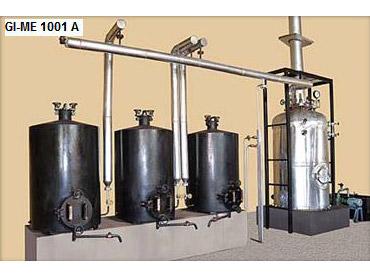

Cashew Steam Cooker

Home » Products » Cashew Processing Equipment » Cashew Steam Cooker
inquiry form
Technical Specifications
  GI - ME 1001 GI - ME 1000
Working Pressure 7.0 Kg /CM2 7.0 Kg /CM2
Steaming Capacity 100 Kgs/Hour 100 Kgs/Hour
Working Temperature 164.17o C 164.17o C
Volumetric Capacity 483 Lts 223 Lts
Steaming Raw Cashew Nuts /hr 1200 Kgs 600 Kgs
Fuel Consumption 75 Kgs/hour 45 Kgs/hour
Hydraulic test Pressure 14 KG /sq cm(100PSIG)
Heating surface 5.63 sq. meters
Design code IBR1950 & latest amendments IBR1950 & latest amendments
Evaporation capacity (at 100° C) 100 Kgs/HR
Weight 1200 Kgs 750 Kgs
Width 1200mm 760mm
Height 2500mm 1500mm

As a specialized cashew steam cooker manufacturer and supplier in China, Jiadi also provides plate type UHT sterilizer, apple juice concentrate processing line, single-effect falling film evaporator, and vertical cooling milk storage tank, among others.

Related Names
Cooking Device for Cashew Nut Making | Different Production Capacity Cashew Cooker | Anacardium Occidentale Steam Cooking Equipment
