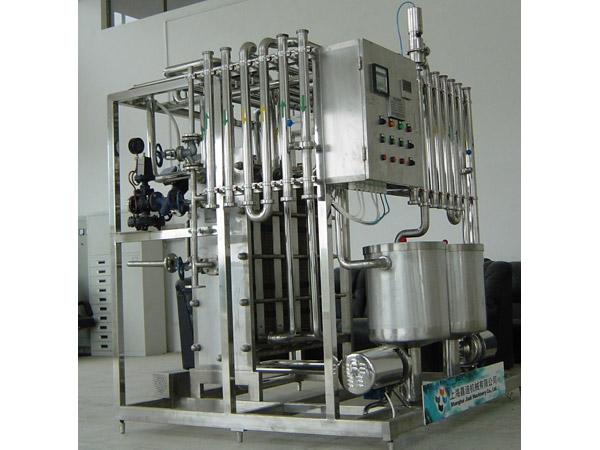

Plate Type UHT Sterilizer

Home » Products » Fruit Juice/Tea Drink Production Line » Plate Type UHT Sterilizer
inquiry form
Technical Specifications
Model and specification Capacity (t/h) Steam consumption(kg/h) Steam pressure(bar) Power(kw) Outline dimensions(1×w×h) Weigh(kg) diameter
material steam medium
BR1-UHT-CH-1SJ 1 120 6.0 2.8 1.6×1.4×1.8 710 25 DN25 25
BR1-UHT-CH-2SJ 2 240 6.0 3.0 1.6×1.4×1.9 750 25 DN25 25
BR2.5-UHT-CH-3SJ 3 360 6.0 3.7 1.8×1.6×2.0 910 38 DN32 38
BR2.5-UHT-CH-4SJ 4 480 6.0 3.7 1.8×1.6×2.0 960 38 DN32 38
BR2.5-UHT-CH-5SJ 5 600 6.0 3.7 1.8×1.6×2.0 1010 38 DN40 38
BR2.5-UHT-CH-6SJ 6 720 6.0 3.7 1.8×1.6×2.0 1070 51 DN50 51
BR2.5-UHT-CH-8SJ 8 960 6.0 4.4 1.8×1.6×2.0 1180 51 DN50 51
BR2.5-UHT-CH-10SJ 10 1200 6.0 7.0 1.8×1.6×2.0 1300 51 DN65 51
BR4-UHT-CH-15SJ 15 1800 6.0 8.0 2.5×2.5×2.2 2100 63 DN80 63
BR6-UHT-CH-20SJ 20 2400 6.0 11.0 3.0×3.0×2.5 2400 63 DN100 63

Process
30~75℃→140℃ (4S, 10S, 15S)→85~92℃→(40℃) return
Cooling water 1:2 ≤30℃ (spare)
