Tube-in-Tube Sterilizer

Tube-in-Tube Sterilizer
Specifications
Model Capacity (kg/h) Sterilizing temp.℃ Cooling
temperature
(℃ )		 Power
Consumption (kw) 		Steam
Consumption (kg/h) 		Water
Consumption 20℃ kg/h 		Compressed air consumption (kg/h) Dimensions
JD-SJ-1 1000 110 32-45 14.1 150 5000 0.1 8000×800×1000
JD-SJ-2 2000 110 32-45 19.2 300 10000 0.1 8000×1000×1000
JD-SJ-3 3000 110 32-45 33 450 15000 0.3 8000×1200×1200
JD-SJ-6 6000 110 32-45 64.5 900 42000 0.3 8000×1200×1800
JD-SJ-8 8000 110 32-45 80.5 1200 56000 0.4 8000×1200×1800
JD-SJ-10 10000 110 32-45 110 1500 70000 0.5 8000×1400×2000
JD-SJ-12 12000 110 32-45 132 1800 84000 0.5 8000×1400×2000

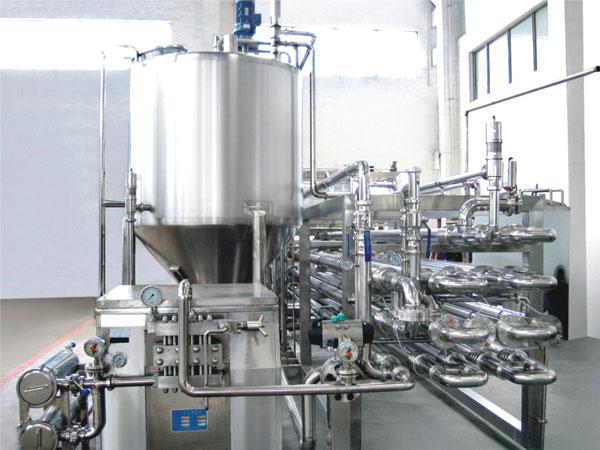

The tube-in-tube sterilizer utilizes a multi-stage recorder and automatic temperature control system to help keep track of important temperature values. Frequency conversion regulates the material cooling temperature. The circulation of hot water and cleaning liquid is enabled via a centrifugal pump. Key mechanical parts are provided by trusted brands. For instance, the steam valve is acquired from SPRIAX SCARCO while electrical components are provided by OMRON and SIEMENS. The onboard PLC monitor clearly indicates all relevant parameters, guarantying performance stability.

As an experienced tube-in-tube sterilizer manufacturer and supplier in China, our company also offers tunnel spray sterilizer and cooler, hot filling machine 3-in-1 unit, emulsification tank, sachet packing machine, and more.
