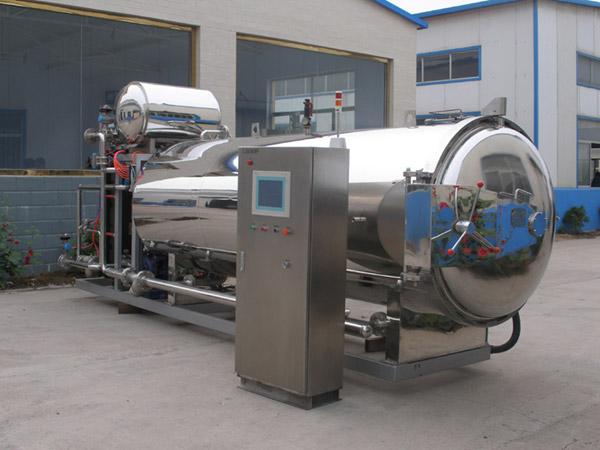

Autoclave

Autoclave

The energy efficient autoclave is utilized for the cooling and sterilization of cans, glass bottles, and PET bottles. Accelerated heating and even heat distribution enable effective and stable operations. We implement an indirect heating and cooling technique to prevent unnecessary exposure to contaminants. An automatic control system and optimized temperature regulation make our autoclave excellent for handling fragile glass packages.

Technical Specifications
Item Model 1000# 1200# 　 　 　 　 　 1300#
1 1 2 3 4 5 6 1 2
Inside Diameter(mm) 1000 1200 1200 1200 1200 1200 1200 1300 1300
Kettle length(mm) 24000 2200 2400 2700 3000 3300 3600 3500 3750
Total length(mm) 4200 4100 4300 4600 4900 5800 5500 5500 5750
Total width(mm) 1600 1800 1800 1800 1800 1800 1800 1900 1900
Total height(mm) 3000 3400 3400 3400 3400 3400 3400 3600 3600
Total Capacity(m2 ) 2.2 3 3.2 3.6 4 4.3 4.5 5.14 5.4
Air Consumption (kg/batch) 120 160 180 200 230 240 250 300 320
Power (kw) 18.5 22.5 22.5 22.5 30.5 30.5 30.5 30.5 30.5
Energy Consumption (kw/h) 9 11 11 11 14 14 14 14 14
Set Temperature 145℃
Test Pressure 0.44Mpa
Optimal Pressure 0.34Mpa

We are a professional autoclave manufacturer and supplier in China. We also provide vibration fluidized bed, tunnel spray sterilizer and cooler, jacket tank (dimple pad, coil jacket), apple juice concentrate processing line, and much more.
