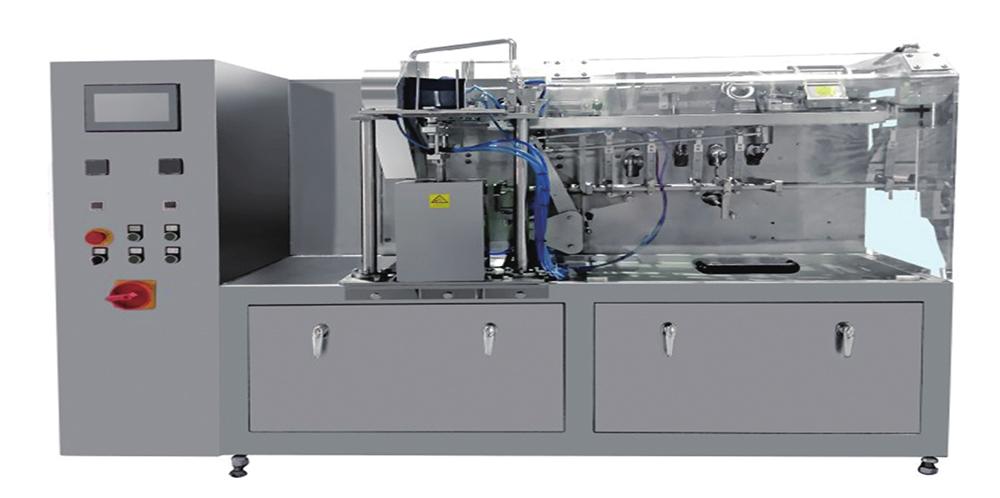

JDG-180D/240D, Pre-made bag Rotary System Pouch Packaging Machines

The JDG-180D/240D pre-made bag rotary system pouch packaging machines are the same as JDG-180/240 as far as packing bag types and packing bag sizes. However, this series produces 2 pouches/cycle, which is twice as fast as the JDG-180/240. If you need highly efficient packaging machines, we recommend the 180D/240D, as it is designed to package solids, liquor, powder, puffed foods, dairy products, coffee grounds, and pharmaceutical products.

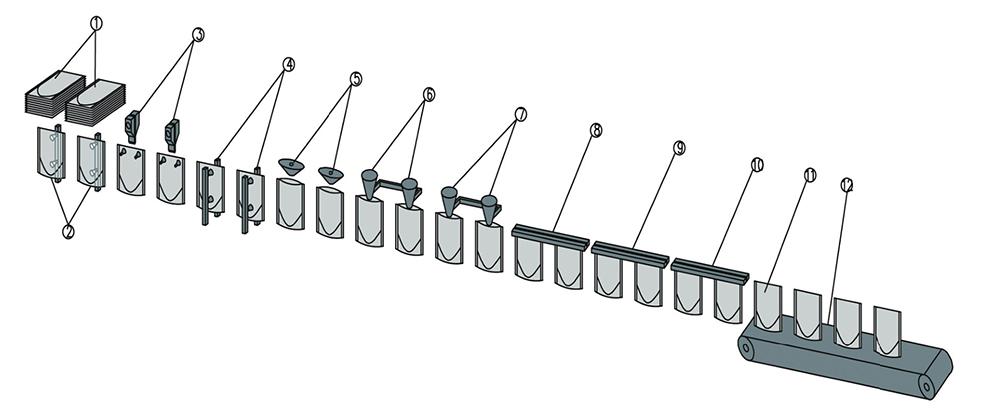

Packing Process

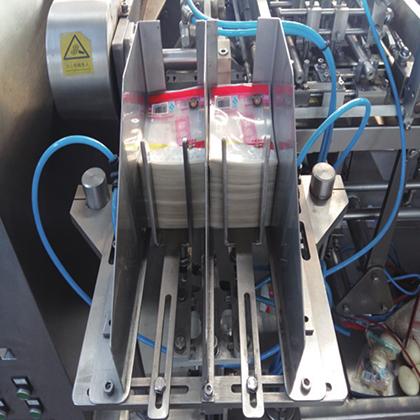

1. Double Premade Pouch Stack
2. Double Flip-Out Pouch-Picking
3. Double Zipper Opening
4. Double Pouch Opening

5. Double Air Flushing
6. Filling Ⅰ
7. Filling Ⅱ
8. Top Seal Ⅰ

9. Top Seal Ⅱ
10. Cold Seal
11. Finished Product
12. Product Outlet

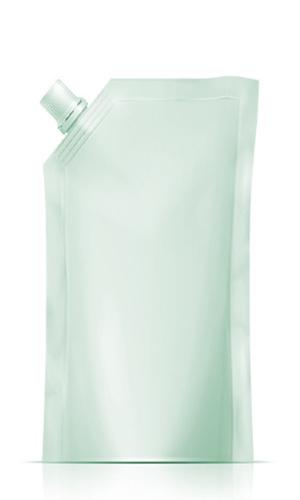

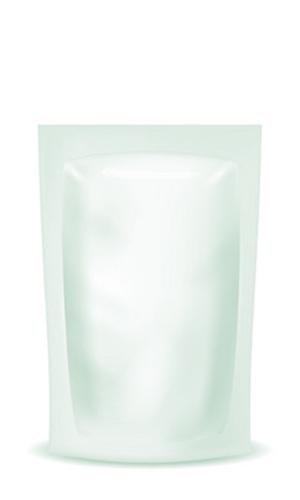

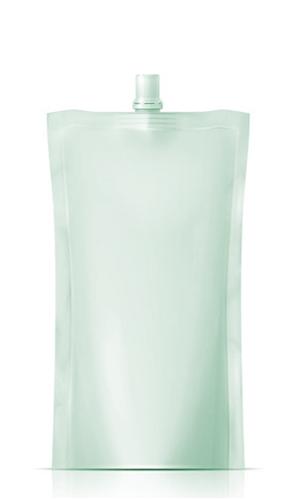

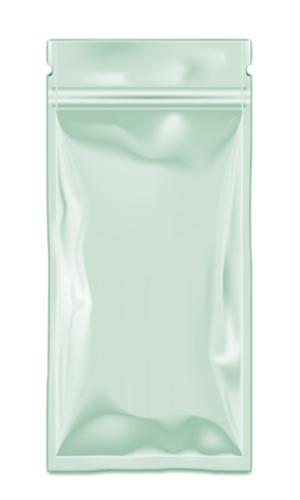

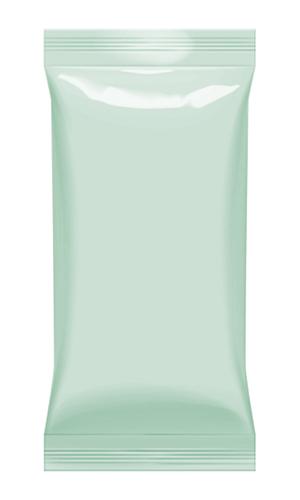

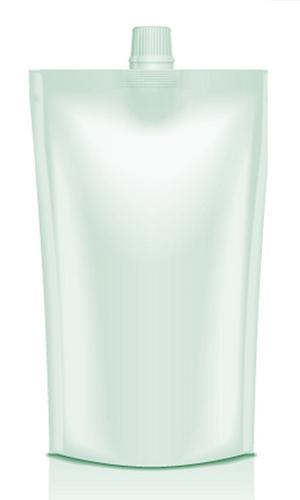

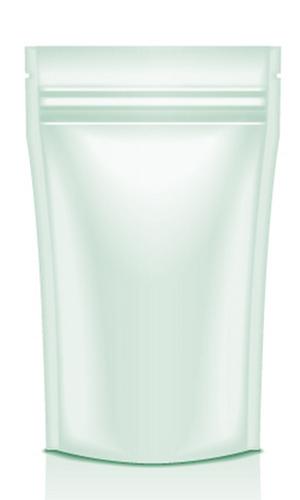

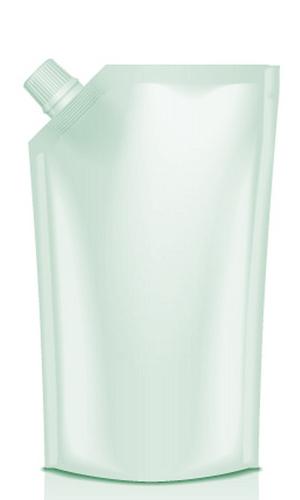

Bag Types
Parameter
Type Minimum Bag Size (mm) Maximum Bag Size (mm) Packing Capacity (ml) Packing speed (ppm) Power (kw) Gas consumption (NL/min) Weight (kg) Equipment Size (mm)
JDG-180D 80*110 90*230 200 100-120 3.5 0.45 900 1800*1300*1500
JDG-240D 100*240 120*320 300 100-120 3.5 0.5 1000 2000*1300*1500
Details

  • · Independent Film Unwind Unit
    · Better doypack forming
    · Ensure good control of film tensile force
    · More flexible and suitable for different pouch specifications

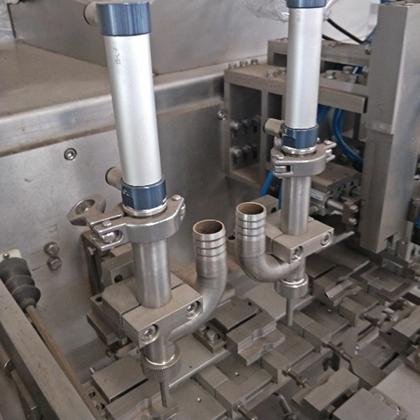

  • · Dual Filling Station
    · Reduce filling time by half
    · Improved filling accuracy
    · Fill 2 products simultaneously

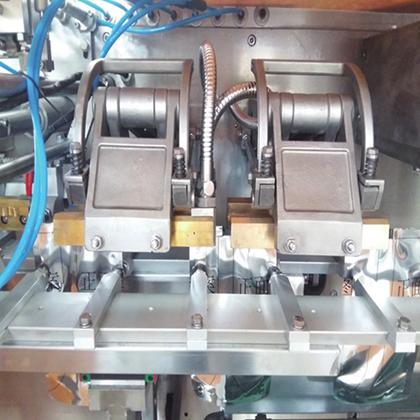

  • · 2 Top Seal Unit
    · Ensure seal strength, no leakage
    · Even seal with good appearance
    · Higher adaptability of film material
