Dual-Layer Storage Tank Series (Vertical, Side or No Agitator)

Home » Products » Stainless Steel Storage Tank » Dual-Layer Storage Tank Series (Vertical, Side or No Agitator)
inquiry form

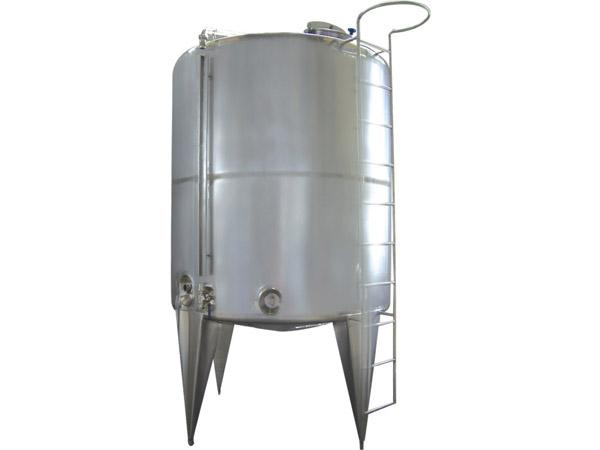

The dual-layer storage tank series is insulated for the proper storing and mixing of beer, juice, and dairy products. This type of cylindrical equipment is used extensively by industries such as chemical and biological engineering. Our tank retains a shell thickness of 2mm and is crated entirely from SUS304-2B or SUS316L stainless steel. The isolated double layer design incorporates 50 to 60mm PU as insulation. The dual-layer storage tank series stands on triangular or cylindrical legs and is compatible with agitators of the wing type, frame type, anchor type, or propeller type. It is also capable of operating without an agitator.

Standard attachments
1. One air tight side manhole
2. Anti butterfly and dirt air vent
3. One PT100 thermometer, temperature indication range 0~100℃
4. CIP cleaning ball
5. Product inlet/outlet
6. Discharge valve
7. Adjustable legs
8. One sanitary sample valve

Technical Specifications
Model Diameter (L) External Diameter (mm) Height (mm) Insulation (mm) Diameter of inlet/outlet
BYSG-500 500 800 2140 50 Ø38/Ø51
BYSG-1 1000 1050 2380
BYSG-1.5 1500 1180 2550
BYSG-2 2000 1340 2760
BYSG-2.5 2500 1420 2940
BYSG-3 3000 1540 3050
BYSG-4 4000 1650 3200
BYSG-5 5000 1780 3250
BYSG-6 6000 1900 3350
BYSG-8 8000 2060 3800 60 Ø65/Ø51
BYSG-10 10000 2300 4050
BYSG-12 12000 2520 4450
BYSG-15 15000 2540 4700

Our company is a specialized dual-layer storage tank series (vertical, side or no agitator) manufacturer and supplier in China. We offer a vast range of products, including horizontal type pouch packing machine, crusher, fresh milk and yogurt two-purpose sterilizing equipment, etc.
