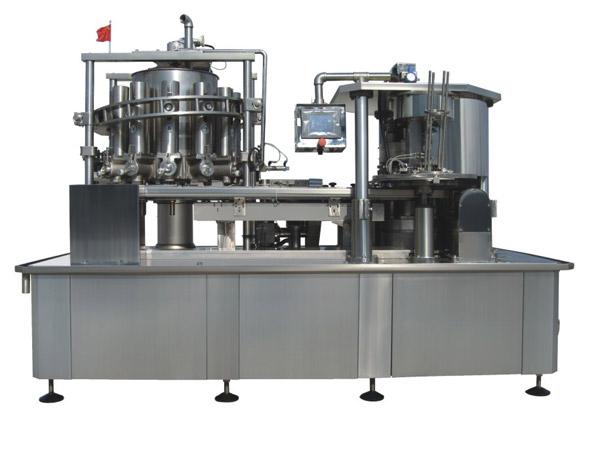

Monoblock Filling and Sealing Machine

Home » Products » Filling Machine » Monoblock Filling and Sealing Machine
inquiry form

The monoblock filling and sealing machine injects tomato paste, pepper paste, and various fruit pastes into tin containers. The compact machine has a streamlined exterior and occupies very little space. Our contraption does not produce vibration, enabling smooth and accurate filling. The durable piston-edge and cylindrical piston are designed for performance. Our auxiliary material mixing system is designed for multi-functionality and includes features such as tank filling, tank entry/exit protection, high/low speed regulation, triple-point liquid level control, and frequency conversion speed control.

Technical Specifications
Filling head 12
Sealing head 4
Can diameter ะค52-99mm
Can height 50-160mm
Filling volume 70-850ml
capacity 80-200cans/min
power 5.5kw
Weight 3500kg
Dimension 2800x1600x1900mm

As a China-based monoblock filling and sealing machine manufacturer and supplier, at Jiadi we also offer aseptic filler, high speed mixing tank, pulping machine, milk weighing tank, and much more.
