Small Scale Integration CIP System

Home » Products » CIP System » Small Scale Integration CIP System
inquiry form

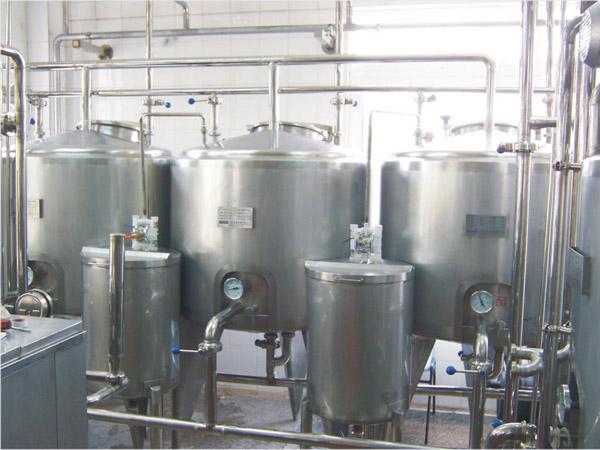

The small scale integration CIP system allows operators to initiate heating of cleaning fluids. Thick acid or alkali liquids can be added into their respective tanks for concentration adjustments. During the cleaning process, CIP fluids are fed through pipes and valves. A healthy level of water should be kept in tanks at all times. All of the aforementioned procedures are exercised manually. Our system is a relatively small investment and requires very little professional knowledge for effective operation. Normal production can be initiated after proper training. The main disadvantage of the small scale integration CIP system is its low degree of automation. In the long run, labor costs can start stacking up. Cleaning fluid temperature regulation can be imprecise. The manual addition of acids and alkalis is unsafe and has a negative impact on production efficiency. This economically priced system is a good choice for small-scale domestic dairy and beverage factories.

Technical Specifications
Model SCIP-0.5 SCIP-1 SCIP-1.5
Acerbity pot 500L 1000L 1500L
Alkali pot 500L 1000L 1500L
Water pot 500L 1000L 1500L
Pump flow 10m3 /h 15m3 /h 20m3 /h
Pump lift 36m 36m 36m
Pump motor 2.2kw 4kw 5.5kw
Heating plate 6m2 8m2 10m2
Dimensions 2900×1000×1700mm 3000×1200×1850mm 3200×1400×2000mm
Weight 350kg 420kg 480kg

Jiadi is a China-based small scale integration CIP system manufacturer and supplier. We provide various types of products such as bottle reverse sterilizer, horizontal type pouch packing machine, belt extractor, and vertical cooling milk storage tank.
