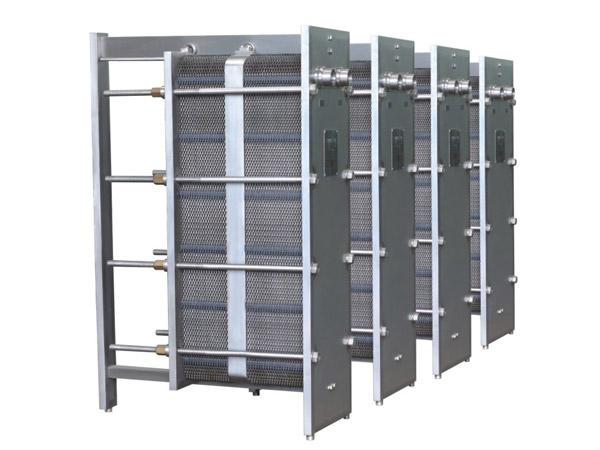

The plate type heat exchanger is capable of both heating and cooling functions. It is an excellent choice for rapid sterilization and heat recovery. The high efficiency device conducts liquid-to-liquid or steam-to-liquid heat transfers with minimal heat loss. The compact structural design allows for easy installation and maintenance. Our exchanger retains a heat transfer coefficient that is 3 to 5 times that of a pipe-style exchanger while occupying only one third of its space under similar pressure consumption conditions.

The yogurt cooling large gap plate-type heat exchanger is designed to accommodate materials with high viscosity. This device has a wide flow and features high heat transfer efficiency with minimal discrepancy, yielding thick yogurt mixtures. When compared to the pipe style heat exchanger it becomes evident that our machine can operate continuously for longer while requiring less maintenance. The exchanger is commonly utilized by industries such as food, paper, textile, chemical, petroleum, and metallurgy.

Technical Specifications
Model BR03 BR01 BR16 BP2 BR26 BR4 BR56 BR8 BR100 BR130 BR180
Heat exchanging area of single plate (m2) 0.03 0.1 0.16 0.21 0.26 0.43 0.56 0.8 1 1.3 1.8
Heat exchanging area of single plate (m2) 0.1~2 1~6 2~20 3~30 6~50 10~70 15~100 30~150 50~200 60~250 80~300
Number of plates 4~67 11~61 13~125 15~150 25~193 25~13 28~178 38~188 51~201 47~193 45~167
Outline dimensions 350~
800
*210
*600
450~
1000
*285
*810
600~
1200
*350
*1320
700~
1500
*400
*1400
800~
1800
*460
*1520
800~
1800
*700
*1550
1000~
1800
*810
*1600
1000~
1800
*1000
*1600
1200~
2300
*1080
*2200
1200~
2300
*1150
*2300
1200~
2300
*1400
*2500
Machine weight (kg) 40~120 90~250 150~450 200~650 450~1050 480~1250 650~1550 800~2250 1000~3100 1050~3550 1200~4250

Jiadi is a professional plate type heat exchanger manufacturer and supplier in China. We offer a variety of products, including fermentation tank/beer storage tank/bright beer tank, sachet packing machine, pipe type UHT sterilizer, and more.
