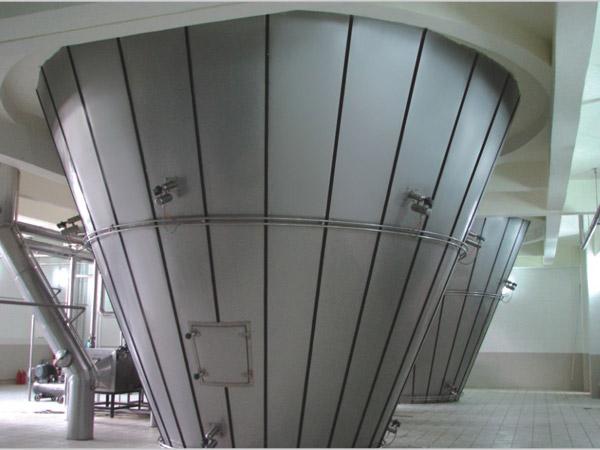

Multiple-Nozzle Vertical Pressure Spray Drying Tower

Home » Products » Milk Powder Production Line » Multiple-Nozzle Vertical Pressure Spray Drying Tower
inquiry form
Technical Specifications
Parameter Moisture Evaporation (kg/h) Steam gauge pressure (Mpa) Heating area (m2) Spray Head Steam Consumption (kg/h) Compressed Air Consumption
(0.7Mpa, m3/min)
Dimensions (m)
Model
PLCGZ0-5 5 0.6~0.8 Electric Heating 1     3.2*5*5.8
PLCGZ03-70 70 120 1 210 0.5 7*6*9
PLCGZ03-125 150 250 2~3 450 0.6 13*8.5*15
PLCGZ03-250 250 385 2~3 750 0.6 14*9*19
PLCGZ03-350 375 570 2~3 1125 0.8 15*10*21
PLCGZ03-500 500 780 3~4 1500 0.8 19*9*24
PLCGZ03-750 750 1150 3~4 2250 1.0 21*13*25.5
PLCGZ03-1000 1000 1550 3~4 3000 1.0 24*13*28.6
PLCGZ03-1500 1500 2300 3~4 4500 1.0 28*16*33
PLCGZ03-2000 2000 3110 6 6000 1.5 28*18*34
PLCGZ03-2500 25000 4100 6 7500 1.5 32*20*36
PLCGZ03-3000 3000 4950 8~12 9000 2.0 32*22*37
PLCGZ03-3500 3500 5710 8~12 10500 2.0 35*24*38
PLCGZ03-4000 4000 6610 8~12 12000 3.0 35*26*39
PLCGZ03-5000 5000 7980 8~12 15000 3.0 36*28*42
PLCGZ03-6000 6000 9110 8~12 18000 3.0 40*30*45
