Stainless Steel Elevator

Home » Products » Fruit Pre-Processing Machine » Stainless Steel Elevator
inquiry form

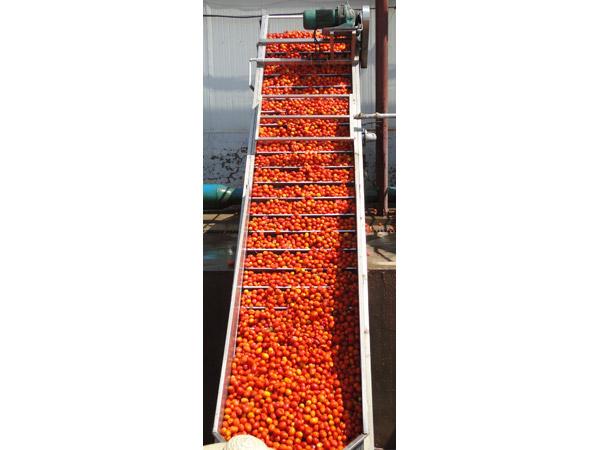

The stainless steel elevator is utilized for the lifting of farm produce such as chili, apples, onions, carrots, tomatoes, and preserved vegetables, among other fruit and vegetables. Material conveying is both stable and reliable. Through the introduction of advanced foreign technology, Jiadi Machinery has become the first domestic manufacturer to implement the no-screw structural design between the chain, lifting scraper, and flat chain board. The absence of a screw effectively prevents damage to other related devices. The stainless steel elevator utilizes an oil collecting plate and floor type oil pipe guide to guarantee food sanitation. The axletree water-proof device significantly extends the potential machine service life. A chain tightening and expanding device effectively adjust the desired chain length. The motor comes with a stainless steel shield to prevent the infiltration of rain and water.

Technical Specifications
Model JD-TS-5 JD-TS-10 JD-TS-15 JD-TS-20 JD-TS-30 JD-TS-40
Capacity (kg) 5000 10000 15000 20000 30000 40000
power (kw) 1.5 2.2 3 3 4 4
Dimension(mm) 3500×800×
700×3800
4500×1180×
700×4800
5500×1280×
800×4800
6000×1380×
800×4800
7000×1480×
900×4800
8000×1580×
900×4800
Material 304/316/443 304/316/443 304/316/443 304/316/443 304/316/443 304/316/443

As a China-based stainless steel elevator manufacturer and supplier, Jiadi also offers fresh milk and yogurt two-purpose sterilizing equipment, jacket tank (dimple pad, coil jacket), storage tank, automatic straight line paste filling machine, among others.

Related Names
Fruit Lifting Machine | Equipment to Lift Vegetable | Different Capacity Fruit Elevator
