Pulping Machine

Home » Products » Fruit Pre-Processing Machine » Pulping Machine
inquiry form

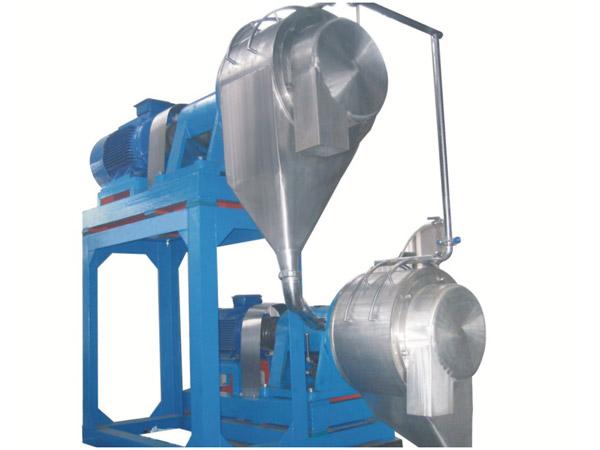

The pulping machine crushes farm produce such as chili, carrot, onion, tomato, onion, strawberry, and blackberry. These pre-processed raw materials possess decomposed enzymes. The introduction of advanced foreign technology allows us to implement either a single channel or dual channel filtering screen. The screen has a tapered structure that makes the occurrence of clogging much less likely during beating procedures. Our screen is crafted from anti-friction material and has a significantly extended service life. The pulping machine is excellent for removing juice impurities. The material buffering tank is equipped with an automatic liquid level controller that enables online calibration, allowing for the even distribution of materials amongst all associated concentration equipment sets.

Technical Specifications
Model JD-DJ-5 JD-DJ-10 JD-DJ-15 JD-DJ-20 JD-DJ-30 JD-DJ-40
Capacity
(kg)
5000 10000 15000 20000 30000 40000
Power (kw) 11 15 18.5/11 22/15 30/15 37/22
Screen mesh diameter 0.8-1.2 0.8-1.2 0.8-1.5 0.8-1.5 0.8-1.5 0.8-1.5
Dimension 1500×830×1840 1500×850×1840 1600×850×2450 1700×900×2950 1800×900×2950 1900×950×2950
Material 304/Q235 304/Q235 304/Q235 304/Q235 304/Q235 304/Q235

As a specialized pulping machine manufacturer and supplier in China, we also provide monoblock filling and sealing machine, lab spray dryer, automatic straight line paste filling machine, and semi-automatic split type CIP system, etc.
